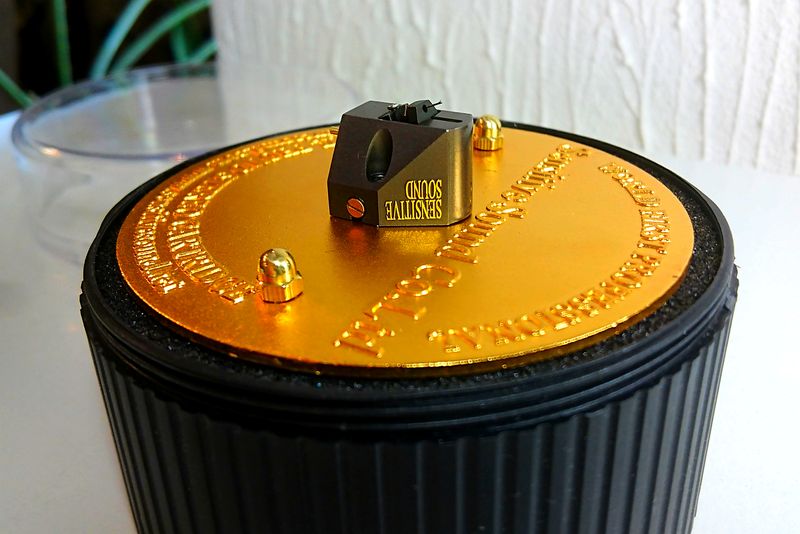

MC Cartridges Splash X1

Frequency response: 10 Hz〜50 kHz (± 1 dB).
Boron cantilever: 0,28 mm.
Diamond needle:
Micro Line.
Case material: high precision CNC
machining from a single piece of aircraft aluminum.
Output voltage: 0.4 mV (5cm / sec, 1kHz).
More channel Separation: 35 dB (1kHz).
The imbalance of channels: 0,3 dB (1 kHz).
Coil Resistance: 10 Ohm.
Dynamic compliance: 12X10 cm / Dean.
Recommended tracking force: 1,70-1,95 g.
Weight of cartridge: 9.65 g

New design of a magnetic circuit  Moving-Coil Stereo Phono Cartridge

SENSITIVE SOUND is the modern version again turns the analog world on its ear with the introduction of the SPLASH phono cartridge.

SPLASH was designed with a strong emphasis on engineering efficiency, so that its performance would be as far beyond the sum of its parts as possible. For this reason, although it shares some of its design philosophy with ART, the concepts are executed rather differently.

SPLASH  The constrained-layer nature of this construction dramatically reduces the resonant signature of each material and creates a far more neutral-sounding body structure than otherwise possible, while the high body stiffness benefits transients, dynamics and resolution.

SPLASH uses a  neodymium magnet system, diamond-coated boron rod cantilever 0.28 mm Micro Line stylus, to mount the cantilever directly into the cartridge body to create a rigid, seamless connection between the cantilever assembly and tonearm headshell.

We firmly believe that the SPLASH represents an important step forward in LP playback.
